Small Farm Tractor Implements

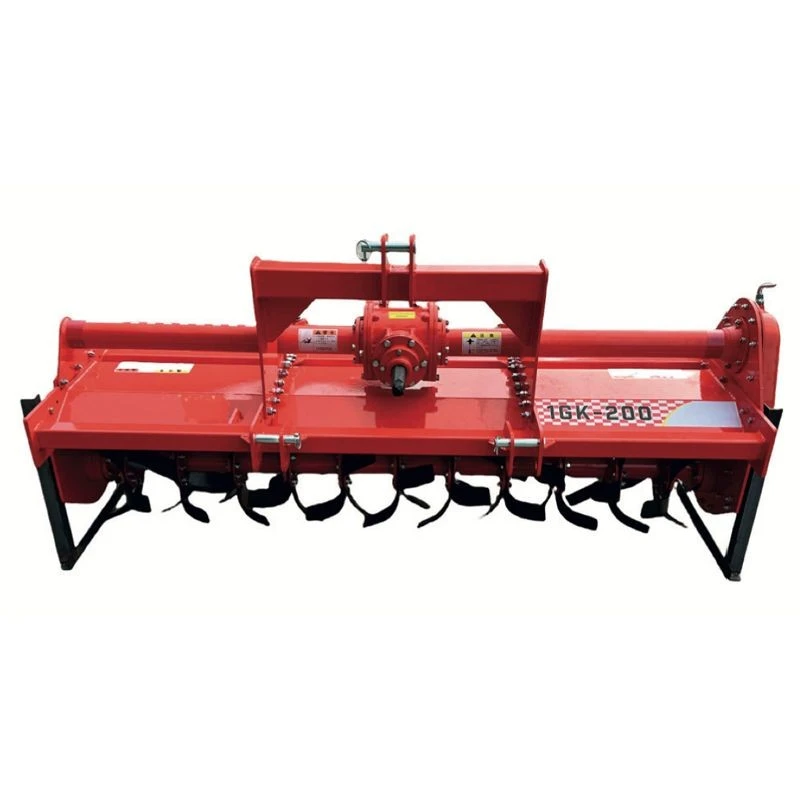

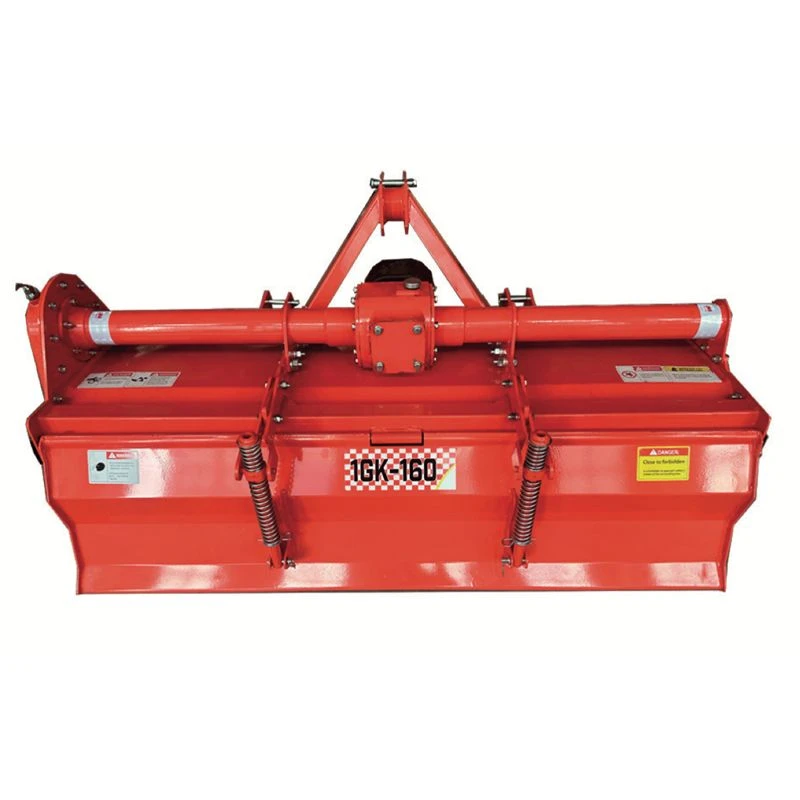

Our single side gear tiller is a good fit if you have a medium tractor and don't need anything overly complicated. It hooks up with a three-point linkage and works with 35 to 90 HP tractors. Working width goes from 120 cm all the way up to 240 cm, so you can pick the size that matches your field. Tillage depth is 13 to 18 cm, which works fine for most crops.
The rotary cultivating machine is built from high quality seamless steel pipe and hot rolled sheet. That gives it good rigidity and strength without making it too heavy. The heavy-duty gear drive sits on one side, built to last. Depth adjustment uses a sliding shoe with a pressure regulating device.
The blades use special cultivation knives, arranged in a cross pattern. Compared to regular tiller blades, these cut through soil with less resistance. They also handle stubble well and resist wear. The cross arrangement keeps the machine stable and balanced while you work.
Descriptions
|
Model |
1GK-120 |
1GK-160 |
1GK-200 |
1GK-240 |
|
Power (HP) |
35-50 |
40-60 |
55-70 |
70-90 |
|
Working width (cm) |
120 |
160 |
200 |
240 |
|
Blade form |
Special cultivation knife |
|||
|
Quantity (pcs) |
36 |
48 |
60 |
72 |
|
Tillage depth (cm) |
13-18 |
13-18 |
13-18 |
13-18 |
|
Power roller speed (rpm) |
540/720 |
540/720 |
540/720 |
540/720 |
|
Hooking mode |
Three-point linkage |
|||
|
Weight(kg) |
278 |
292 |
432 |
466 |
|
Dimension L*W*H (mm) |
960*1435*920 |
950*1850*960 |
980*2230*960 |
980*2630*960 |
Certificates
Production workshop
Exhibitions
Partners
Logistics packaging
FAQ
Q1: What tractor horsepower works best for the 240 cm model?
A1: 70 to 90 HP is recommended. Less power will struggle to reach full depth.
Q2: Can I use this single side gear tiller on rocky ground?
A2: Yes, but go slower. The heavy gear drive handles rocks better than chain drive, but blades will still wear faster.
Q3: How do I adjust the tillage depth?
A3: Use the sliding shoe pressure regulating device. Simple to turn and locks in place.
