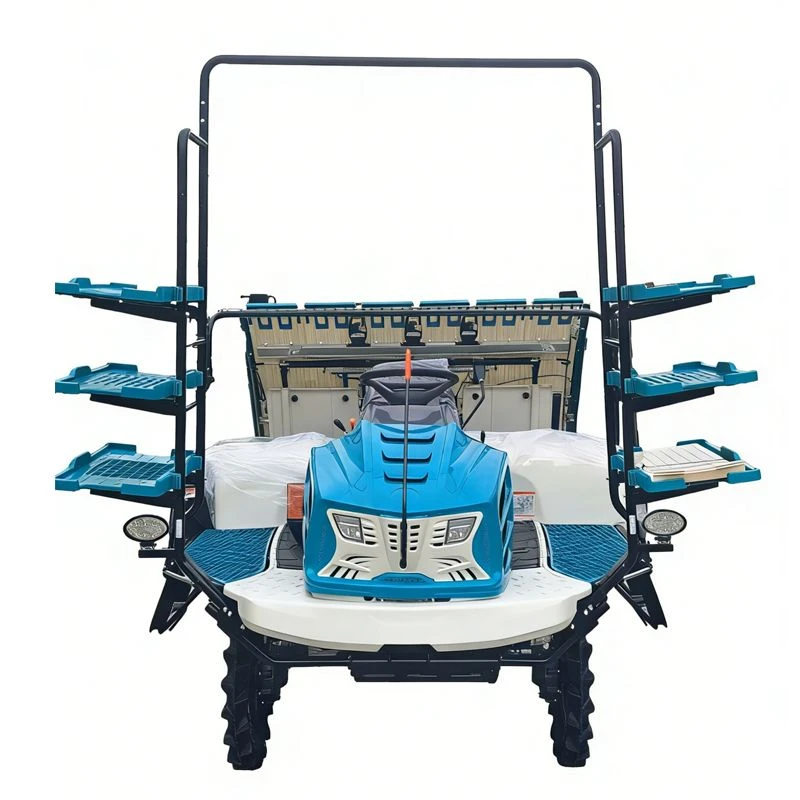

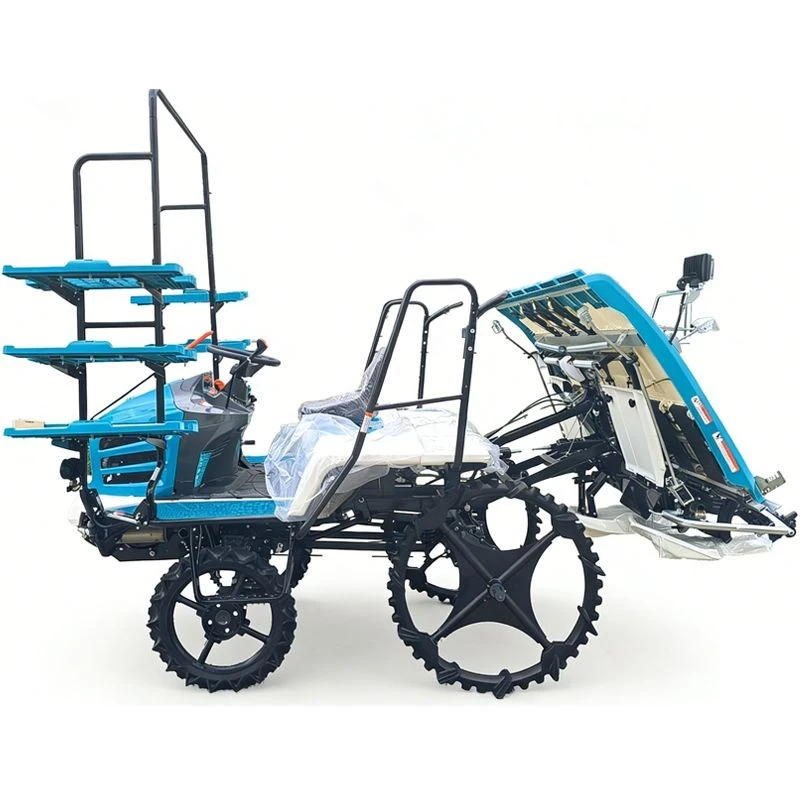

Automatic Paddy Transplanter
The high-speed planting machine 2ZG-6 represents the advanced level of agricultural machinery, specifically engineered to meet the demanding needs of modern rice farming. Equipped with 18.5kW 3-cylinder vertical water-cooled diesel engines, the riding paddy planter delivers strong power with a fuel consumption rate of only 2.2～5.6 kg/hm², which ensures cost-effective operation. The HST stepless transmission system allows for smooth speed adjustment from 0 to 5.94km/h, while the hydraulic steering system provides easy and precise control, reducing operator fatigue during long working hours.
The machine is fitted with high-quality rubber tires that provide excellent traction and stability in muddy paddy fields, which prevents slippage and ensuring consistent planting quality. The 34L large fuel tank allows for extended working hours without frequent refueling, and the electric start system ensures easy and quick startup even in cold conditions.
Descriptions
|
Parameter |
Specification |
|
Model |
2ZG-6 riding paddy transplanter |
|
Driving System |
4-wheels driving with HST stepless transmission |
|
Overall Dimension (L*W*H) |
3,090×2,220×2,580 mm |
|
Total Weight |
810 kg |
|
Engine Power |
18.5 kW / 3200 rpm |
|
Fuel Tank Capacity |
34 L diesel |
|
Displacement |
0.904 L |
|
Ground Clearance |
500 mm |
|
Starting Method |
Electric |
|
Working Speed |
0-5.94 km/h |
|
Number of Planting Rows |
6 rows |
|
Planting Row Spacing |
300 mm |
|
Planting Spacing |
100-240 mm (7 options) |
|
Planting Depth |
10~55 mm |
|
Fuel Consumption |
2.2-5.6 kg/hm² |
|
Working Efficiency |
0.2-0.6 hm²/h |
Certificates
Production workshop
Exhibitions
Partners
Logistics packaging
FAQ
Q1: Can the planting depth be adjusted according to different seedling types?
A1: Yes, the planting depth can be easily adjusted between 10～55mm, making it suitable for various rice seedling varieties and growth stages.
Q2: What is the maximum working efficiency of this automatic paddy transplanter?
A2: The machine can achieve a working efficiency of up to 0.6 hm² per hour, depending on field conditions and operating speed.
Q3: Is the machine suitable for different terrain conditions?
A3: With a 500mm ground clearance and 4-wheel driving system, it performs well on both flat and slightly undulating paddy fields, ensuring stable operation.
