Walking Type Agricultural Tractor

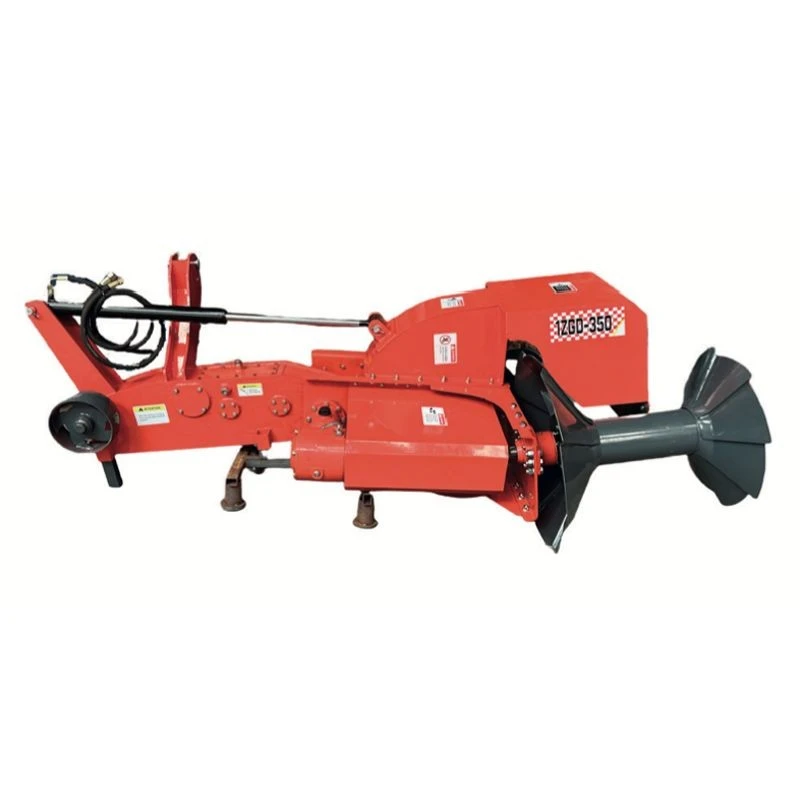

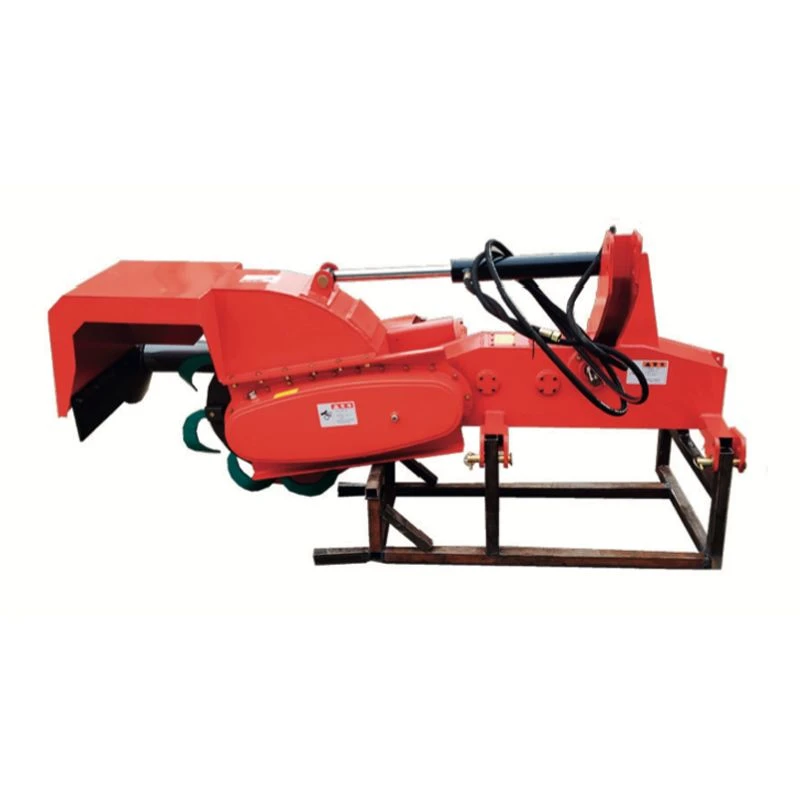

Our paddy field ridger solves a common rice farm problem – weak ridges that leak, collapse, or waste water. Instead of building ridges by hand or with poor quality machines, this implement does the job right. It covers soil, forms the ridge shape, and compresses it firmly, all in one operation. The result is a straight, solid ridge with a smooth surface. Water stays in the paddy field, and ridges hold up through the whole growing season.

The ridger machine connects to your tractor with a three-point linkage and uses a gear drive. It fits tractors from 50 to 100 HP. The ridge height is 30 to 40 cm, and top width is about 30 cm. The machine uses disc type rotary blades to take soil from the side with four blades on the left and four on the right. A single side V-shaped roller then presses the ridge firm. The tool roller turning radius is 385 mm, and it runs at standard 540 rpm PTO speed. Total machine weight is 410 kg, and dimensions are 1050 mm long, 2280 mm wide, and 900 mm high. Farmers choose this paddy field ridger because it replaces slow, tiring manual ridge building. You get lower operating cost, higher efficiency, and ridges that don't leak or collapse.
