Walk Behind Garden Tractor
video

Walk Behind Garden Tractor

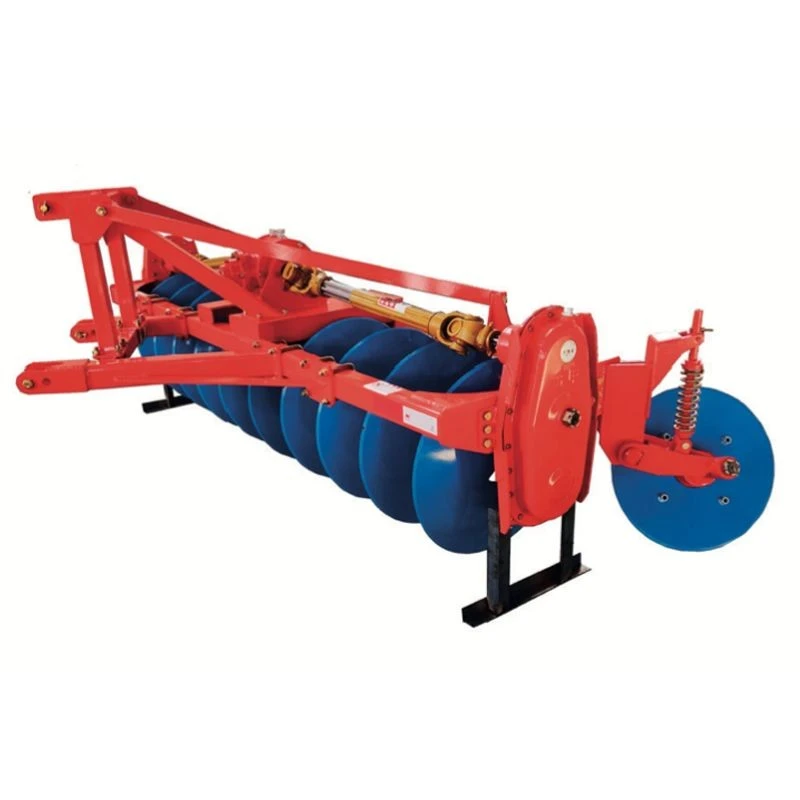

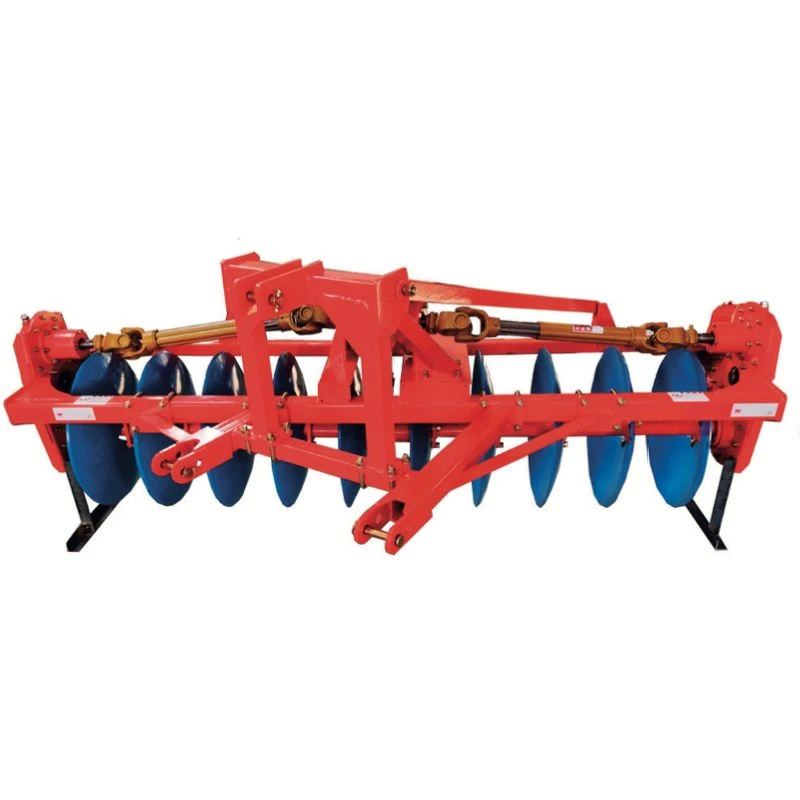

This disc plough uses a gear drive and double-side transmission. It works well in tough fields with weeds, standing stalks, or soil containing brick and stone pieces.
Send Inquiry
Product Introduction

Our disc plough is different from standard ploughs. It uses a gear drive with double-side transmission and a three-point linkage, fitting tractors from 60 to 120 HP. Instead of just scraping the soil, the plough blades rotate as they work. This rotation cuts through crop stalks, pushes past bricks and stones, and keeps the machine from clogging or blocking. That means you can plough fields that would stop other machines – weedy fields, stalk-heavy fields, or ground with hard debris.



Working width ranges from 160 cm to 240 cm, and tillage depth is 20 to 25 cm. The number of discs goes from 6 to 10 depending on the model. Because the blades rotate, the farm plough handles high soil resistance without choking. You get clean ploughing, less downtime for cleaning, and lower labor costs. The gear drive plough is strong and durable, and the whole machine is easy to adjust. Farmers choose this disc plough when they need to save time, work difficult fields, and get good quality ploughing without constant stops for clearing weeds or rocks.

disc plough
gear drive plough



Descriptions



Model

1LYQ-623A

1LYQ-823A

1LYQ-1023A

Working width (cm)

160

190

240

Working depth (cm)

20-25

20-25

20-25

Quantity (pcs)

6

8

10

Power (HP)

60-90

90-110

90-120

Input shaft speed (rpm)

540

540

540

Weight(kg)

560

600

744

Dimension L*W*H (mm)

2310*1680*1120

2510*1680*1120

2710*1680*1120

Hooking mode

Three-point linkage



Certificates



product-1200-500



Production workshop



product-1200-530



Exhibitions



product-1200-909



Partners



product-1200-819



Logistics packaging



product-1200-990



FAQ



Q1: Can this disc plough work in rocky soil?

A1: Yes. The rotating blades help push past small to medium rocks. For very large rocks, slow down your tractor speed.

Q2: What tractor power is required for the 10-disc model?

A2: 90 to 120 HP is recommended for normal soil. Harder soil may need more power.

Q3: Does the gear drive need special maintenance?

A3: Check the gear oil level regularly. Otherwise, standard farm equipment maintenance is enough.
